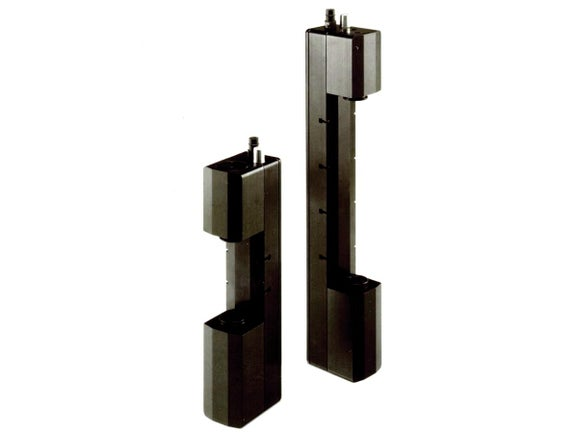

C-Star Transmissometer
The C-Star transmissometer has a novel monolithic housing with a highly intgrated opto-electronic design to provide a low cost, compact solution for underwater measurements of beam transmittance. The C-Star is capable of free space measurements or flow-through sampling when used with a pump and optical flow tubes. The sensor can be used in profiling, moored, or underway applications. Available with a 6000 m depth rating.
Added to quote
Key Features
- Shipboard application option 10 and 25 cm optical pathlengths available Output is calculated in beam attenuation Available in 4 measurement wavelengths
Parameters Measured
Specifications
| Specification | Value |
|---|---|
| Communication Options | RS-232 , analog |
| Depth Rating (Meters) | 600m, 6000m |
| Power Source | External |
| Housing Material Options | Acetal copolymer, Aluminum, Titanium |
| Connector | MCBH-6M |
| Sampling Rate | Up to 8 Hz |
| Power Consumption | 35 mA |
| Accuracy | 0.003 m-1 @ 1 Hz |
| Resolution | 14 bit |
| Biofouling Protection | Optional |
