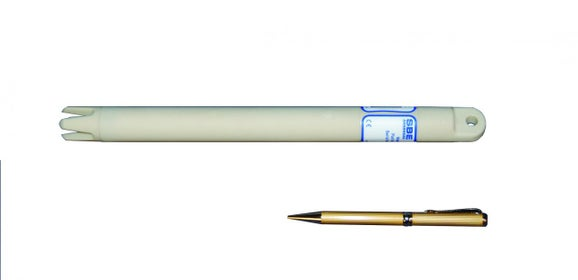

SBE 56 Temperature Logger
The SBE 56 is a low-cost, high-accuracy, fast-sampling temperature recorder with USB interface, internal battery, and memory. Data are uploaded upon recovery via the internal USB connector, and output in engineering units (degrees C, date and time). The high stability preserves the initial calibration accuracy and means less frequent (or no) calibrations. The SBE 56 delivers this accuracy and stability at a price you would expect for recorders that are less accurate, and is ideal for countless underwater recording applications. Memory capacity exceeds 15 million samples. Battery endurance varies, depending on the sampling scheme. Sampling every 0.5 sec, the SBE 56 can be deployed for 1 month (5.3 million samples). Sampling 4 times per minute, the battery lasts almost 2 years.
Added to quote
Key Features
- Temperature and time, at user-programmable 0.5-sec to 9-hour intervals.
- Internal memory and battery.
- 1500 m plastic housing.
- Internal USB 2.0 interface; open housing and plug in cable for setup or data upload.
- Fast upload; approximately 40 minutes for full memory (> 15 million samples).
- Easy-to-use Java-based software (compatible with nearly any computer operating system) for setup, upload, and data plotting.
- Rigorous 11-point temperature calibration of each sensor
Parameters Measured
Specifications
| Specification | Value |
|---|---|
| Communication Options | USB |
| Depth Rating (Meters) | 1500m |
| Power Source | Internal |
| Housing Material Options | Plastic |
| Onboard Memory | Yes |
| Connector | Internal USB |
| Sampling Rate | Up to 2 Hz (2 samples/sec) |
| Memory Capacity (Samples) | 15.9 million samples in FLASH memory |
| Power Consumption | Internal power 3.6 V; Current draw, low power: 0.601 mA hours/day; Current draw, self-discharge: 0.067 mA hours/day; Current draw, operation: 0.371 µA hours/sample, 0.44 sec/sample |
| Accuracy | ± 0.002 °C (-5 to to 35 °C); ± 0.01 °C (35 °C to 45 °C) |
| Software | Seaterm V2 , Seasoft© V2 |
| Resolution | 0.0001 °C |
| Biofouling Protection | No |
