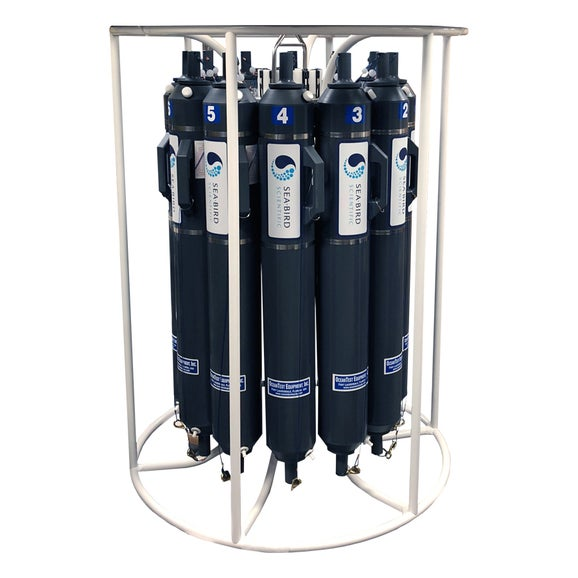

SBE 32 Carousel Water Sampler

The SBE 32 Carousel Water Sampler has been extensively deployed throughout the world’s oceans, where it has built a reputation for reliability and ease of use. With an accessory Deck Unit, the Carousel provides water sampling and real-time CTD data acquisition with any Sea-Bird profiling CTD (requires electro-mechanical cable and slip-ring equipped winch). With an accessory underwater unit, the Carousel can operate autonomously with a Sea-Bird Scientific profiling CTD and can be programmed to close bottles at selected depths, allowing deployment using non-electrical wire or line. The Carousel is available in two models: • Full-size SBE 32 for a 12 or 24-position system (36-position custom). • Compact SBE 32C for a 12-position sampler with bottles up to 8 liters, for use with limited vertical clearance.

Added to quote

We’ve saved this item to your quote list.

Download Datasheet

Key Features Specifications Resources Content

Key Features

12, 24, or 36 bottles ranging from 1.7 to 30 liters.
Easy integration with any Sea-Bird profiling CTD.
Autonomous (pre-programmed) or real-time data acquisition and water sampling; bottle firing in any order.
Depths to 6800 m (aluminum) or 7000 m (titanium).
Seasoft© V2 Windows software package (setup, data upload, real-time data acquisition and keyboard control of bottle firing, data processing).
Five-year limited warranty.

Specifications

Specification	Value
Communication Options	RS-232
Depth Rating (Meters)	6800m, 7000m, 10500m
Power Source	External
Housing Material Options	Aluminum, Titanium
Connector	MCBH
Sampling Rate	CTD dependent
Memory Capacity (Samples)	CTD dependent
Accuracy	(stated pH accuracy achievable with frequent field calibrations)
