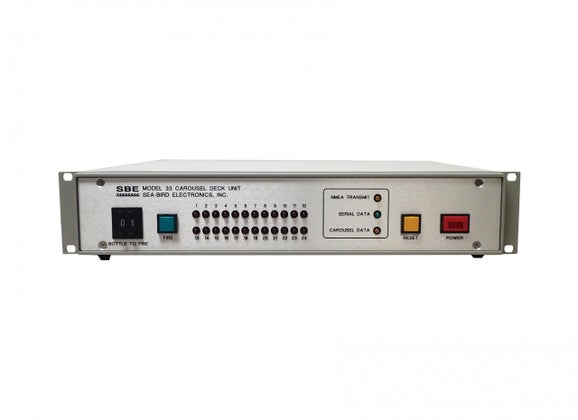

SBE 33 Carousel Deck Unit

The rack-mountable SBE 33 provides surface power and real-time data acquisition and control for an SBE 32 Carousel Water Sampler (can close up to 24 bottles) with SBE 33 interface installed, or for the smaller SBE 55 ECO Water Sampler. When powered and controlled by the SBE 33, the water sampler can be used with an SBE 19, 19plus, 19plus V2, 25, 25plus, or 49 CTD, or without a CTD. The system provides real-time data telemetry and surface power for the CTD, and permits water sampler control with the SBE 33 front panel buttons or via our Seasave software. The SBE 33 can also be used with a Power & Data Interface Module (PDIM) when a water sampler is not needed. The PDIM provides the same power and CTD data interface functionality as the water sampler, but without water sampling capability.

Added to quote

We’ve saved this item to your quote list.

Download Datasheet

Key Features Specifications Resources Case Studies

Key Features

Surface power and real-time data acquisition and control for Sea-Bird water samplers and CTDs; two-way communication over single- or multi-conductor sea cable, and ample power for auxiliary sensors integrated with the CTD.
Bottles fired sequentially or in any order; front-panel LED display indicates which bottles have been fired.
NMEA and Surface PAR interfaces; decoded latitude and longitude, and Surface PAR data, appended to CTD data in SBE 33, and passed to computer for storage and/or display with CTD data.
Seasoft© V2 Windows software package (setup, real-time data acquisition, data processing).
Five-year limited warranty.

Specifications

Specification	Value
Communication Options	RS-232
Connector	MCBH
Power Consumption	120 VAC at 60 Hz and 1.75A or 240 VAC at 50 Hz and 1A (switchable) 240 VAC at 50 Hz and 1A (switchable)
Software	Seasoft© V2
