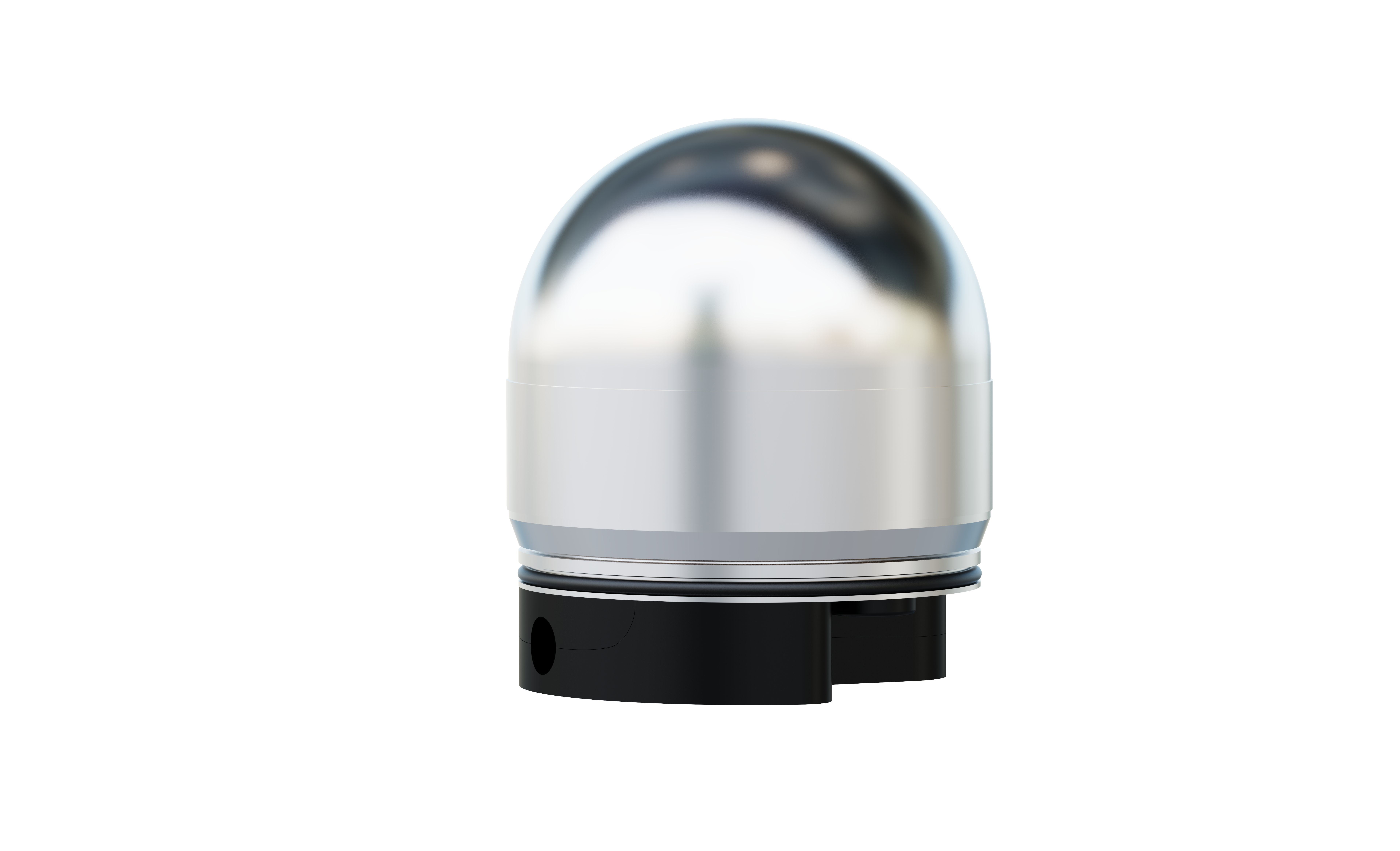

SBE 63 Optical Dissolved Oxygen Sensor
The SBE 63 is an individually calibrated, high-accuracy, optical oxygen sensor to assist in critical hypoxia and ocean stoichiometric oxygen chemistry research on a variety of moored and float-based platforms. Careful choices of materials and geometry are combined with superior electronics and calibration methodology to yield significant gains in performance. The SBE 63 is designed for use in a CTD’s pumped flow path, providing optimal correlation with CTD measurements. The elapsed time between the CTD and associated oxygen measurement is easily quantified, and corrected for, in post-processing. The plumbing’s black tubing blocks light, reducing in-situ algal growth.
Added to quote
Key Features
- 1 Hz sampling speed, RS-232 output.
- Each sensor fully and individually calibrated (valid for 0 - 450 µmol/kg oxygen, 0 - 30 °C, 0 - 35 psu, 0 - 2000 dbars).
- For use in CTD pumped flow path, optimizing correlation with CTD measurements.
- 600 or 7000 m housing.
- Configurations:
- With optional sensor mount for use on CTD RS-232 auxiliary sensor channel, or
- Integrated with SBE 37 MicroCAT CTD, Sea-Bird Navis float CTD, or SBE 41 Argo float CTD.
Parameters Measured
Specifications
| Specification | Value |
|---|---|
| Communication Options | RS-232 |
| Depth Rating (Meters) | 600m, 7000m |
| Power Source | External |
| Housing Material Options | Plastic, Titanium |
| Connector | MCBH |
| Sampling Rate | 1 Hz (1 sample/sec) |
| Power Consumption | Input: 6-24 VDC |
| Accuracy | Larger of ± 3 µmol/kg (equivalent to 0.07 ml/L or 0.1 mg/L) or ± 2% |
| Software | Seasoft© V2 |
| Resolution | 0.2 µmol/kg |
| Biofouling Protection | No |
