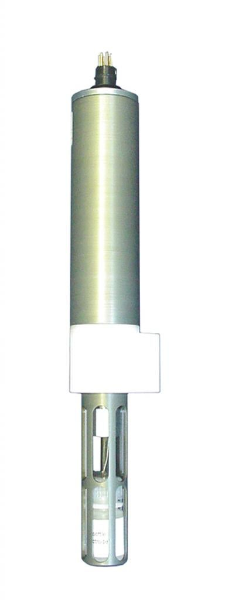

SBE 27 pH/O.R.P. (Redox) Sensor

The SBE 27 pH and O.R.P. (Redox) sensor combines a pressure-balanced, glass-electrode, Ag/AgCl reference probe and platinum O.R.P. electrode to provide in-situ measurements at depths to 1200 m. The replaceable pH probe is permanently sealed and is supplied with a soaker bottle attachment that prevents the reference electrode from drying out during storage. The sensor is a modular, self-contained package that is easy to install, service, and calibrate. The SBE 27 is intended for use as an add-on auxiliary sensor for profiling CTDs (SBE 9plus; SBE 19, 19plus, and 19plus V2 SeaCAT; and SBE 25 and 25plus Sealogger). Power / signal interface cables and mounting hardware are available separately.

Added to quote

We’ve saved this item to your quote list.

Download Datasheet

Key Features Specifications Resources Content

Key Features

Voltage output; interface electronics buffer and offset the differential voltages of the pH reference junction and the electrode potential (in water) between the O.R.P. electrode and pH reference junction to produce pH- and O.R.P.-dependent output voltages.
Factory calibration results tabulated on a certificate furnished with each sensor: - pH calibrated against precision buffer solutions (4, 7, and 10 pH ± 0.02 pH). - Extremely stable O.R.P. circuitry does not require subsequent calibrations.
1200 m housing.
Supplied with plastic soaker bottle and KCl soaker solution.
Seasoft© V2 Windows software package (computation of pH and O.R.P. in engineering units).
Five-year limited warranty.

Parameters Measured

Specifications

Specification	Value
Communication Options	analog
Depth Rating (Meters)	1200m
Power Source	External
Housing Material Options	Aluminum, Titanium
Connector	MCBH
Sampling Rate	1 sec pH, 10 msec ORP
Power Consumption	6 to 24 VDC, 10 mA
Accuracy	± 0.1 pH, ± 1.0 mV O.R.P.
Software	Seasoft© V2
