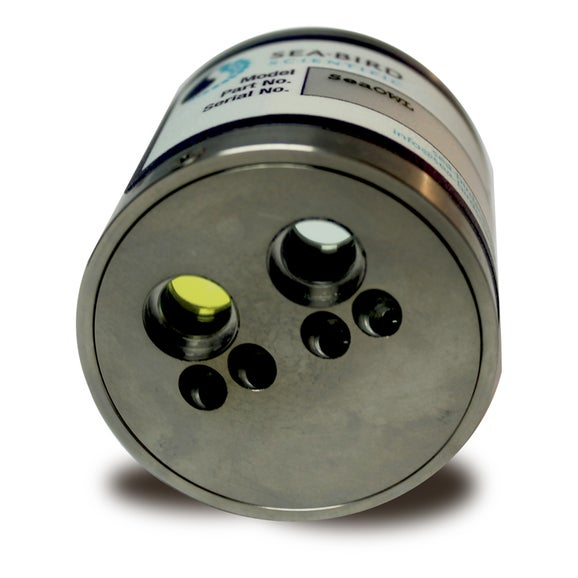

SeaOWL UV-A™

Based-upon the highly successful ECO sensor, Sea-Bird Scientific has developed an industry-leading oil-detection technology with 5X optical resolution improvement over its predecessor. SeaOWL-UV-A™ measures crude oil-in-water using the same UV-A excitation and blue emission wavelengths currently used in the ECO fDOM fluorometer. The SeaOWL UV-A™ improves the resolution and range of the ECO with a greater depth of field, optimized electronics and dynamic gain stage modulation. The new dynamic gain provides industry-leading sensitivity across a large detection range, making saturation unlikely in even the most heavily impacted environments. The compact SeaOWL UV-A™ design also includes chlorophyll fluorescence and 700 nm backscattering measurements to discriminate crude oil from phytoplankton and other natural sources of fDOM.

Added to quote

We’ve saved this item to your quote list.

Download Datasheet

Key Features Specifications Resources Case Studies

Key Features

Industry-leading optical resolution.
Wide dynamic gain prevents measurement saturation even within heavily impacted environments.
Three parameters in a single sensor: chlorophyll, backscattering, and Fluorescent Dissolved Organic Matter (FDOM).
Backscattering and chlorophyll fluorescence provide discrimination of crude oil from phytoplankton and other natural sources of FDOM.

Parameters Measured

Specifications

Specification	Value
Communication Options	RS-232
Depth Rating (Meters)	2000m
Power Source	External
Housing Material Options	Titanium
Connector	MCBH-6M
Sampling Rate	1 Hz (1 sample/sec)
Power Consumption	81 mA
Accuracy	Measurement dependent
Resolution	Measurement dependent
Biofouling Protection	No
