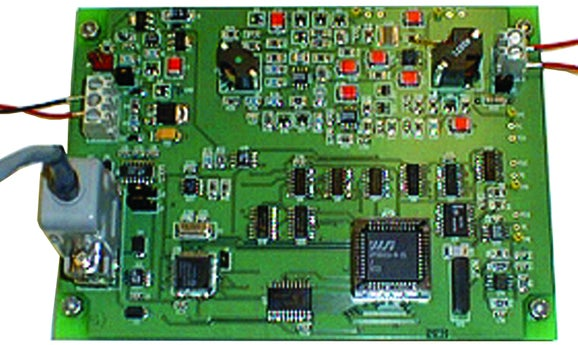

Surface Inductive Modem (SIM)
The Surface Inductive Modem (SIM) is a vital link in Sea-Bird’s inductive modem (IM) telemetry systems, which provide data communications without the need for underwater electrical connections. The SIM provides the link between the underwater IM instruments and the computer / buoy controller. Communication with the computer / buoy controller is via RS-232. SIM-Direct is for typical cable-to-shore applications, where the inductive modem wire is insulated above the surface and connected to the SIM. A second wire from the SIM connects directly to seawater ground. SIM-Coupled is useful for buoy applications, where the jacketed wire is grounded to seawater on each end and connected to the SIM via an Inductive Cable Coupler (ICC).
Added to quote
/Surface%20Inductive%20Modem.jpeg)
SUNA V2: High‑Accuracy Nitrate Monitoring
The SUNA V2 delivers real‑time nitrate data with industry‑leading accuracy and stability across diverse environments. Its UV absorption technology, adaptive sampling, anti‑fouling options, and robust titanium housing make it a trusted tool for long‑term nutrient monitoring.
Key Features
- Communication link between SIM and underwater IM is half-duplex, so talking and listening is sequential.
- SIM and user’s computer/controller communicate at 1200, 2400, 4800, or 9600 baud; SIM and underwater IM communicate at 1200 baud.
- Sea-Bird’s field-proven IM telemetry, with more than 3000 Sea-Bird IM instruments deployed since 1997.
- Five-year limited warranty
Specifications
| Specification | Value |
|---|---|
| Communication Options | RS-232 |
| Power Consumption | 7-25 VDC, 30 mA |
